DOP-100

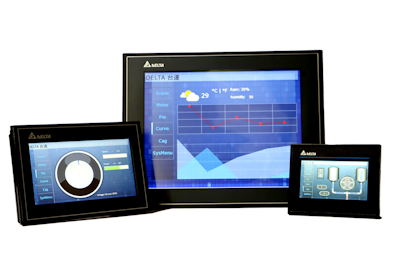

View offerDelta Electronics' DOP-100 series consists of touchscreens of various sizes and high-quality colours.
The programming software has an extensive library and can be set up multilingually. Use of your own design is possible. The screen saves the PLC(s) memory.
The HMIs of the DOP-100 series communicate with several brands of PLCs, inverters and controllers.
Series
DOP-103DQ
- Screen size (inch): 4.3
- Ports (n): 2
- Resolution (dpi): 480*272
- 37.8mm x 129mm x 103mm
DOP-103SQ
- Screen size (inch): 4.3
- Ports (n): 2
- Resolution (dpi): 480*272
- 37.8mm x 129mm x 103mm
DOP-105CQ
- Screen size (inch): 5.6
- Ports (n): 3
- Resolution (dpi): 320*234
- 50mm x 184mm x 144mm
DOP-107BV
- Screen size (inch): 7
- Ports (n): 2
- Resolution (dpi): 800*480
- 355mm x 215mm x 161mm
DOP-107CV
- Screen size (inch): 7
- Ports (n): 3
- Resolution (dpi): 800*480
- 61.2mm x 215mm x 161mm
DOP-107DV
- Screen size (inch): 7
- Ports (n): 2
- Resolution (dpi): 800*480
- 35.5mm x 215mm x 161mm
DOP-107EG
- Screen size (inch): 7
- Ports (n): 2
- Resolution (dpi): 800*600
- 51.5mm x 184mm x 144mm
DOP-107EV
- Screen size (inch): 7
- Ports (n): 3
- Resolution (dpi): 800*480
- 61.2mm x 215mm x 161mm
DOP-107WV
- Screen size (inch): 7
- Ports (n): 3
- Resolution (dpi): 800*480
- 39mm x 196mm x 136mm
DOP-110CG
- Screen size (inch): 10
- Ports (n): 3
- Resolution (dpi): 800*600
- 46.8mm x 299mm x 224mm
DOP-110CS
- Screen size (inch): 10
- Ports (n): 3
- Resolution (dpi): 1024*600
- 61mm x 272mm x 200mm
DOP-110IS
- Screen size (inch): 10
- Ports (n): 3
- Resolution (dpi): 1024*600
- 54mm x 272.6mm x 200.6mm
