Human Machine Interfaces (HMI)
View offerThe Standard HMI is equipped with 2 COM ports to meet most applications. The Ethernet versions offer quick and easy connection to other devices.
The advanced HMI uses a wide screen and narrow frame design. It supports Ethernet communication and multilingual input. The DOP-112/115 have a version with multimedia functions.
Series

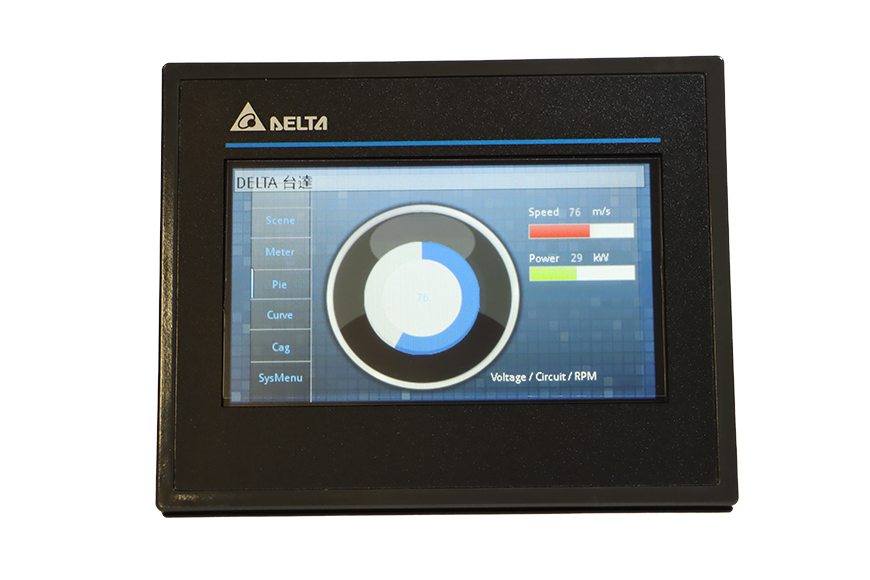

DOP-103DQ
- Screen size (inch): 4.3
- Ports (n): 2
- Resolution (dpi): 480*272
- 37.8mm x 129mm x 103mm

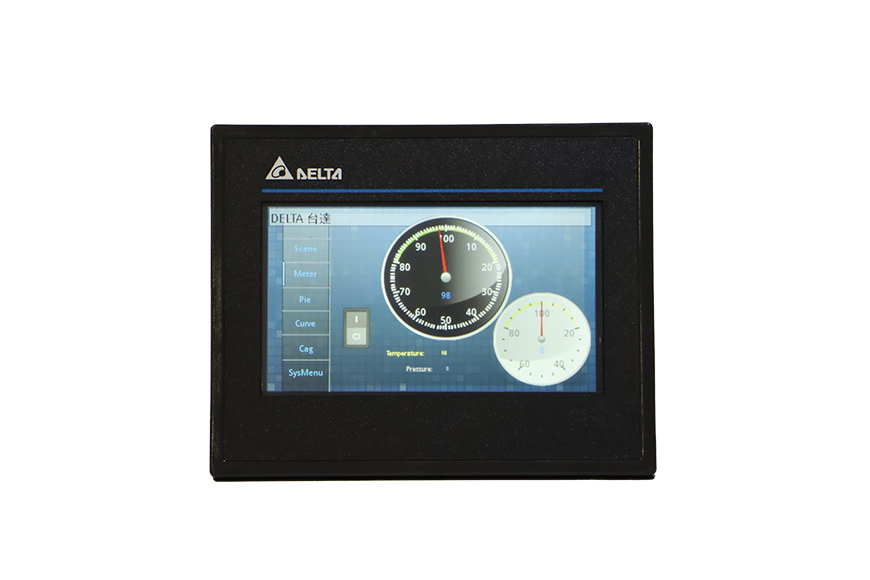

DOP-103SQ
- Screen size (inch): 4.3
- Ports (n): 2
- Resolution (dpi): 480*272
- 37.8mm x 129mm x 103mm
DOP-105CQ
- Screen size (inch): 5.6
- Ports (n): 3
- Resolution (dpi): 320*234
- 50mm x 184mm x 144mm

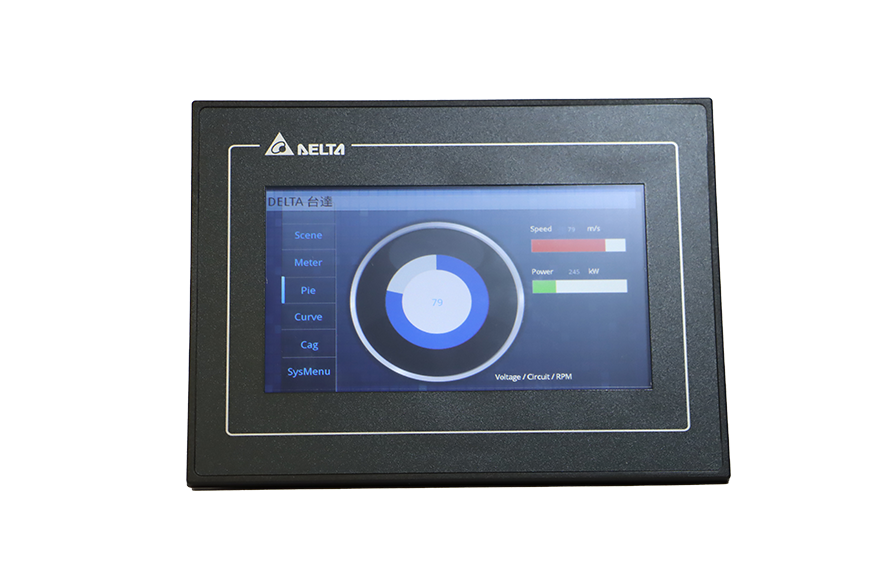

DOP-107BV
- Screen size (inch): 7
- Ports (n): 2
- Resolution (dpi): 800*480
- 355mm x 215mm x 161mm

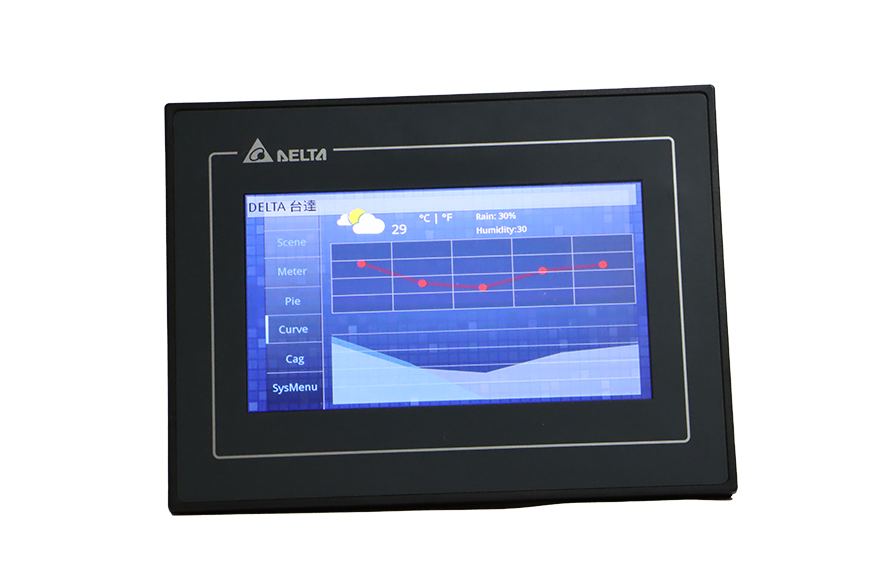

DOP-107CV
- Screen size (inch): 7
- Ports (n): 3
- Resolution (dpi): 800*480
- 61.2mm x 215mm x 161mm
DOP-107DV
- Screen size (inch): 7
- Ports (n): 2
- Resolution (dpi): 800*480
- 35.5mm x 215mm x 161mm
DOP-107EG
- Screen size (inch): 7
- Ports (n): 2
- Resolution (dpi): 800*600
- 51.5mm x 184mm x 144mm
DOP-107EV
- Screen size (inch): 7
- Ports (n): 3
- Resolution (dpi): 800*480
- 61.2mm x 215mm x 161mm
DOP-107IV
- Screen size (inch): 7
- Ports (n): 3
- Resolution (dpi): 800*480
- 61.2mm x 215mm x 161mm
DOP-107PV
- Screen size (inch): 7
- Ports (n): 3
- Resolution (dpi): 800*480
- 38.8mm x 196.6mm x 136.6mm

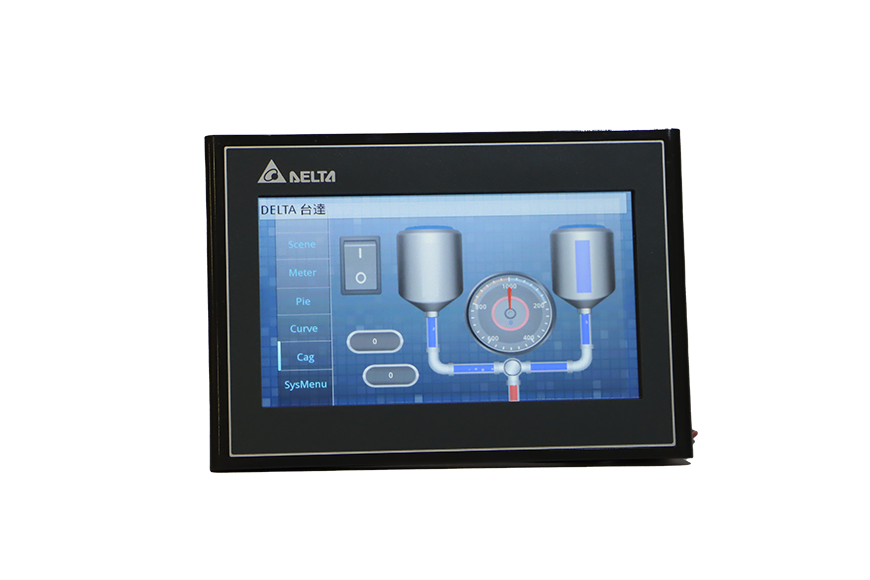

DOP-107WV
- Screen size (inch): 7
- Ports (n): 3
- Resolution (dpi): 800*480
- 39mm x 196mm x 136mm

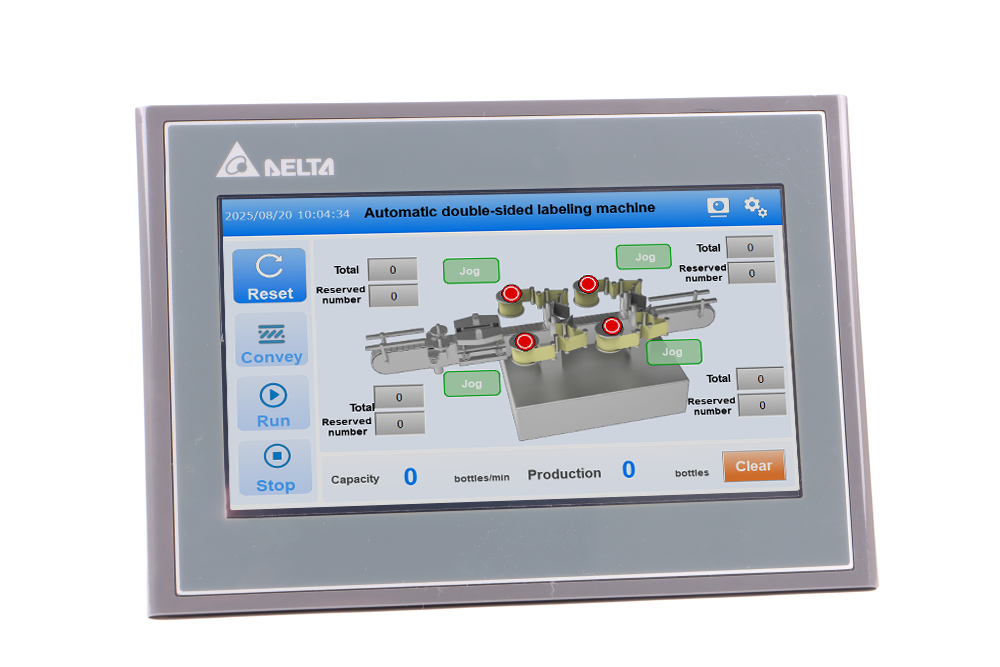

DOP-107WVCS
- Screen size (inch): 7
- Ports (n): 3
- Resolution (dpi): 800*480
- 39mm x 196mm x 136mm
