VFD-E
View offerThis compact powerhouse with built-in PLC & mains filter is a versatile inverter with a wide range of applications. With the added functionality of the internal PLC, this inverter offers great flexibility.
Available in powers:
- 1~115 Vac from 0.4 to 0.75 kW
- 1~230 Vac from 0.2 to 2.2 kW
- 3~230 Vac from 3.7 to 15 kW
- 3~400 Vac from 0.4 to 22 kW
VFD002E21T
- Power (KW): 0.2
- Phase: 1~230
- Current (Ampere): 1.6
- 152mm x 72mm x 142mm
VFD004E11P
- Power (KW): 0.4
- Phase: 1~115
- Current (Ampere): 2.5
- 111.5mm x 70mm x 155mm

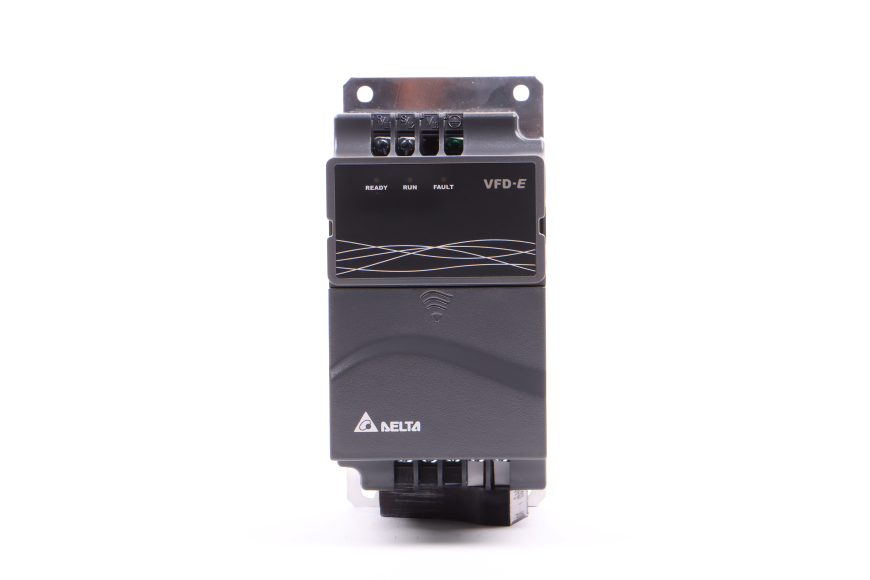

VFD004E21P
- Power (KW): 0.4
- Phase: 1~230
- Current (Ampere): 2.5
- 111.5mm x 70mm x 155mm
VFD004E21T
- Power (KW): 0.4
- Phase: 1~230
- Current (Ampere): 2.5
- 152mm x 72mm x 142mm
VFD004E43T
- Power (KW): 0.4
- Phase: 3~400
- Current (Ampere): 1.5
- 152mm x 72mm x 142mm
VFD007E11A
- Power (KW): 0.75
- Phase: 1~115
- Current (Ampere): 4.2
- 152mm x 100mm x 174mm
VFD007E21P
- Power (KW): 0.75
- Phase: 1~230
- Current (Ampere): 4.2
- 111.5mm x 70mm x 155mm

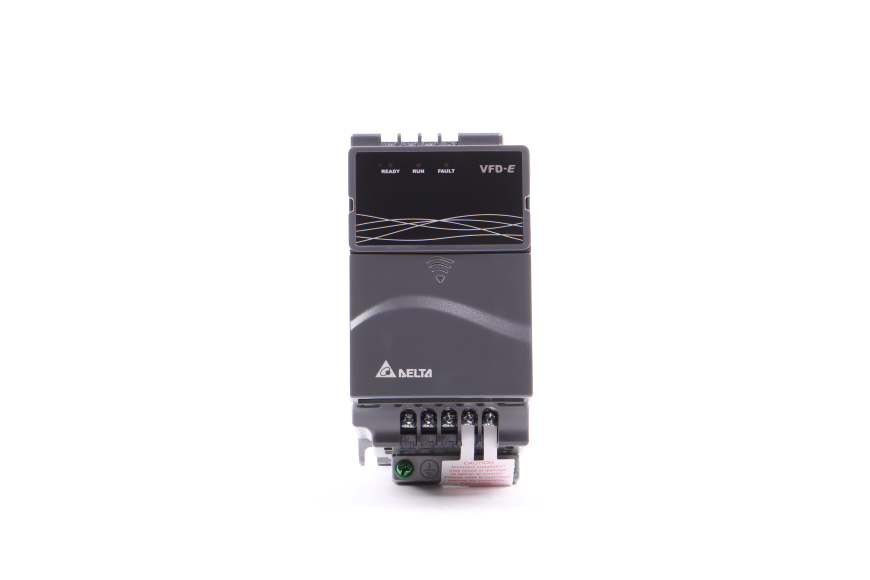

VFD007E21T
- Power (KW): 0.75
- Phase: 1~230
- Current (Ampere): 4.2
- 152mm x 72mm x 142mm
VFD007E43T
- Power (KW): 0.75
- Phase: 3~400
- Current (Ampere): 2.5
- 152mm x 72mm x 142mm
VFD015E21A
- Power (KW): 1.5
- Phase: 1~230
- Current (Ampere): 7.5
- 152mm x 100mm x 174mm
VFD015E43T
- Power (KW): 1.5
- Phase: 3~400
- Current (Ampere): 4.2
- 152mm x 72mm x 142mm

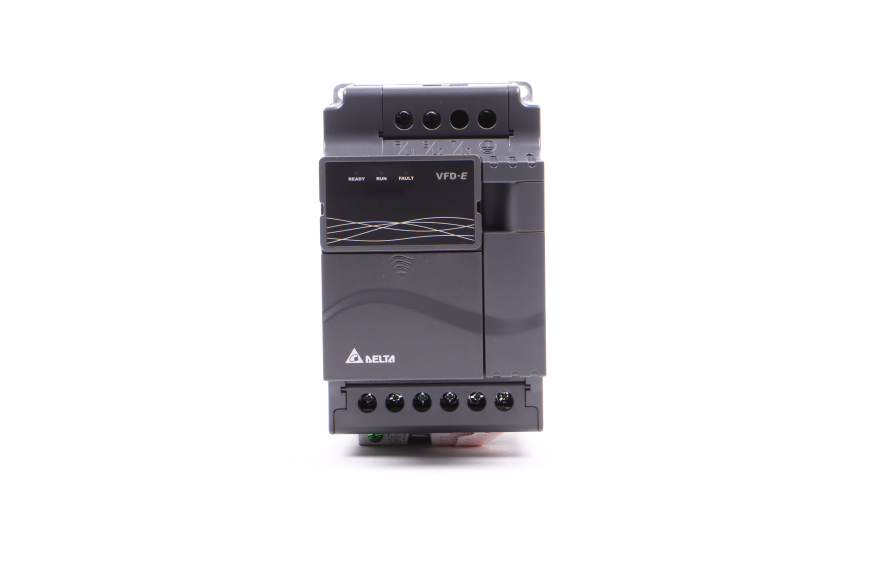

VFD022E21A
- Power (KW): 2.2
- Phase: 1~230
- Current (Ampere): 11
- 152mm x 100mm x 174mm
