  2. DC power supply Force-GT 24 Vdc - 5 A - 120 W DIN rail - 1-phase 230 Vac

DC power supply Force-GT 24 Vdc - 5 A - 120 W DIN rail - 1-phase 230 Vac

Artikelnummer DRF-24V120W1GBA

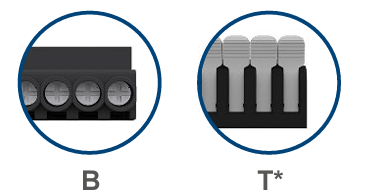

Highly efficient compact power supply. Available with terminal connection

More information
  • Output voltage (Vdc): 24
  • Output current (A): 5
  • Input voltage (Vac): 1~230
  • Power (W): 120
  • Type: DC power supply
  • Mounting: DIN-rail
  • Sizes: 123.6mm x 30mm x 116.8mm (b x h x d)

Key features:

  • Built-in constant-current circuit for charging applications
  • Wide operating temperature range -30°C to 70°C and cold start at -40°C
  • Full load operating temperature up to 60°C
  • Long-life electrolytic capacitor
  • Reduced power consumption at no load
  • Built-in DC OK relay and LED indicator
  • Conformal coating on PCBs to protect against common dust and contaminants
