DC Power supply Force-GT 24 Vdc, 40 A, 960 W
Artikelnummer
DRF-24V960W3GBA

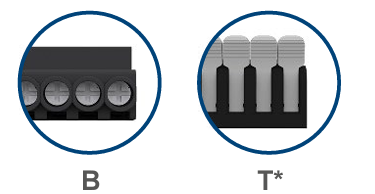

Highly efficient compact power supply. Available with terminal connection
- Output voltage (Vdc): 24
- Output current (A): 40
- Input voltage (Vac): 3~400
- Power (W): 960
- Type: DC power supply
- Mounting: DIN-rail
- Sizes: 124mm x 110mm x 128.7mm (b x h x d)
Key features:
- Built-in constant-current circuit for charging applications
- Wide operating temperature range -30°C to 70°C and cold start at -40°C
- Full load operating temperature up to 60°C
- Long-life electrolytic capacitor
- Reduced power consumption at no load
- Built-in DC OK relay and LED indicator
- Conformal coating on PCBs to protect against common dust and contaminants
Downloads
Brochures, manuals and technical information.
- Catalog Power Supplies .pdf
- Flyer GT Force .pdf
- Datasheet DRF-24V960W3GBA .pdf
- Afmetingen en CAD_bestanden DRF-24V960W3GBA .zip
