- Force-GT
- DC power supply Force-GT 24 Vdc - 10 A - 240 W DIN rail - 1-phase 230 Vac
DC power supply Force-GT 24 Vdc - 10 A - 240 W DIN rail - 1-phase 230 Vac
Artikelnummer
DRF-24V240W1GBA

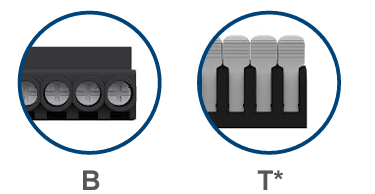

Highly efficient compact power supply. Available with terminal connection
- Output voltage (Vdc): 24
- Output current (A): 10
- Input voltage (Vac): 1~230
- Power (W): 240
- Type: DC power supply
- Mounting: DIN-rail
- Sizes: 123.6mm x 40mm x 116.8mm (b x h x d)
Key features:
- Built-in constant-current circuit for charging applications
- Wide operating temperature range -30°C to 70°C and cold start at -40°C
- Full load operating temperature up to 60°C
- Long-life electrolytic capacitor
- Reduced power consumption at no load
- Built-in DC OK relay and LED indicator
- Conformal coating on PCBs to protect against common dust and contaminants
Downloads
Brochures, manuals and technical information.
