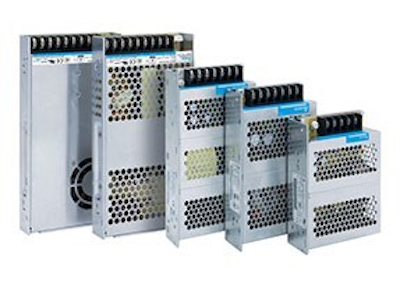

PMC
View offer- Universal AC input voltage range
- Power will not de-rate for the entire input voltage range
- Full corrosion resistant aluminium housing
- Conforms to harmonic current IEC/EN 61000-3-2, Class A
- High MTBF > 700,000 hrs per Telcordia SR-332
- Safety approval according to IEC/EN/UL 60950-1 (ITE standard) and EMI to EN 55032, Class
PMC-05V035W1AA
- Output voltage (Vdc): 5
- Output current (A): 7
- Input voltage (Vac): 1~230
- 38mm x 98mm x 97mm
PMC-12V150W1BA
- Output voltage (Vdc): 12
- Output current (A): 12.5
- Input voltage (Vac): 1~230
- 38mm x 178mm x 97mm
PMC-24V100W1AA
- Output voltage (Vdc): 24
- Output current (A): 4.17
- Input voltage (Vac): 1~230
- 38mm x 158mm x 97mm
PMC-24V150W1AA
- Output voltage (Vdc): 24
- Output current (A): 6.25
- Input voltage (Vac): 1~230
- 38mm x 178mm x 97mm
PMC-24V300W1BA
- Output voltage (Vdc): 24
- Output current (A): 12.5
- Input voltage (Vac): 1~230
- 41mm x 199mm x 105mm
PMC-24V600W1BA
- Output voltage (Vdc): 24
- Output current (A): 25
- Input voltage (Vac): 1~230
- 61mm x 215mm x 120mm
PMC-48V600W1BA
- Output voltage (Vdc): 48
- Output current (A): 12.5
- Input voltage (Vac): 1~230
- 61mm x 215mm x 120mm
