ASD-B3A

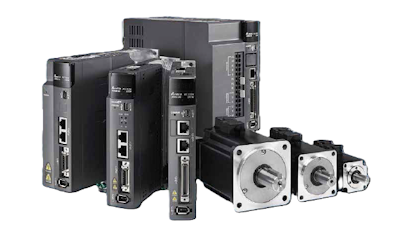

View offerThe ASDA-B3 series is distinguished by high tolerance and stable operation. This creates a highly efficient and user-friendly working environment. The precise motion control functions improve production efficiency and quality.
These servo drives have increased speed and torque and offer advanced features such as safe torque off, PR mode, and EtherCAT communication. The ASDA-B3 series meets the needs of today's manufacturing environments.
Available in:
- 1~230 Vac from 0.1 to 1.5 kW
- 3~230 Vac 2 and 3 kW
ASD-A3-0443-EP
- Power (KW): 0.4
- Voltage (Vac): 3~400
- Servo type: drive
- 204mm x 65mm x 180mm
ASD-A3-0743-EP
- Power (KW): 0.75
- Voltage (Vac): 3~400
- Servo type: drive
- 204mm x 65mm x 180mm
ASD-A3-1043-EP
- Power (KW): 1
- Voltage (Vac): 3~400
- Servo type: drive
- 204mm x 65mm x 180mm
ASD-A3-1543-EP
- Power (KW): 1.5
- Voltage (Vac): 3~400
- Servo type: drive

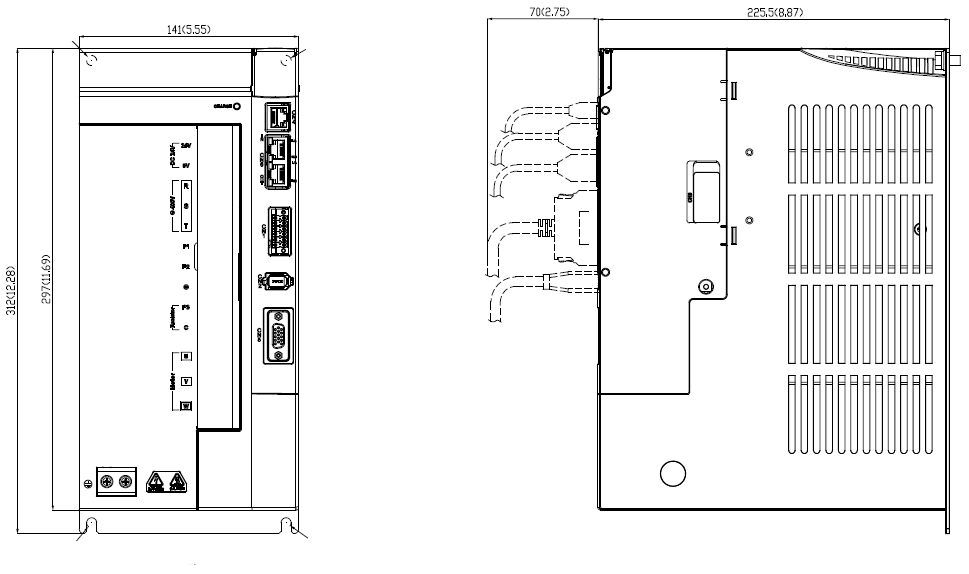

ASD-A3-1B43-EP
- Power (KW): 11
- Voltage (Vac): 3~400
- Servo type: drive
- 225mm x 141mm x 312mm
ASD-A3-1F43-EP
- Power (KW): 15
- Voltage (Vac): 3~400
- Servo type: drive
- 225mm x 141mm x 312mm
ASD-A3-2043-EP
- Power (KW): 2
- Voltage (Vac): 3~400
- Servo type: drive
- 200mm x 110mm x 260mm
ASD-A3-3043-EP
- Power (KW): 3
- Voltage (Vac): 3~400
- Servo type: drive
- 200mm x 110mm x 260mm
ASD-A3-4543-EP
- Power (KW): 4.5
- Voltage (Vac): 3~400
- Servo type: drive
- 200mm x 110mm x 260mm
ASD-A3-5543-EP
- Power (KW): 5.5
- Voltage (Vac): 3~400
- Servo type: drive
- 200mm x 110mm x 260mm

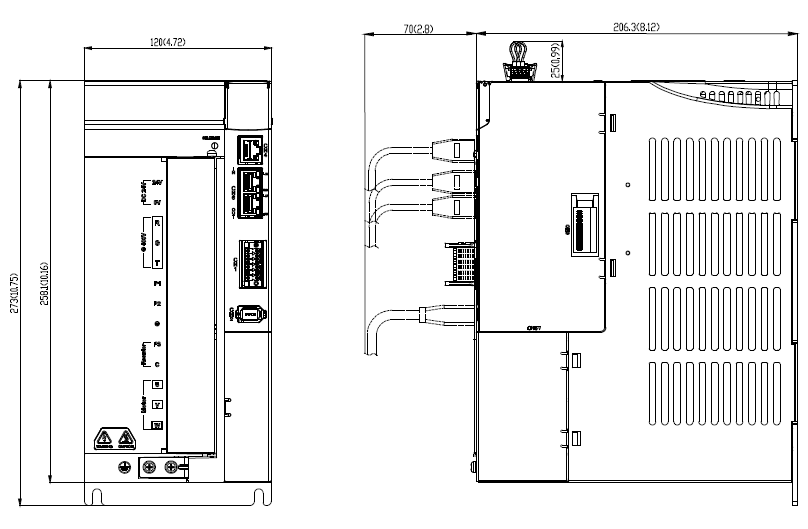

ASD-A3-7543-EP
- Power (KW): 7.5
- Voltage (Vac): 3~400
- Servo type: drive
- 206mm x 120mm x 273mm
Page 1 of 3
Questions about Servo Delta B3A
The tutorial below shows how to make a link between Delta's Servo B3 Servo drive and a Siemens S7 PLC
