  1. Frequency inverters
  2. Frequency inverter CP2000 - 22 kW 3-phase 400 Vac - STO

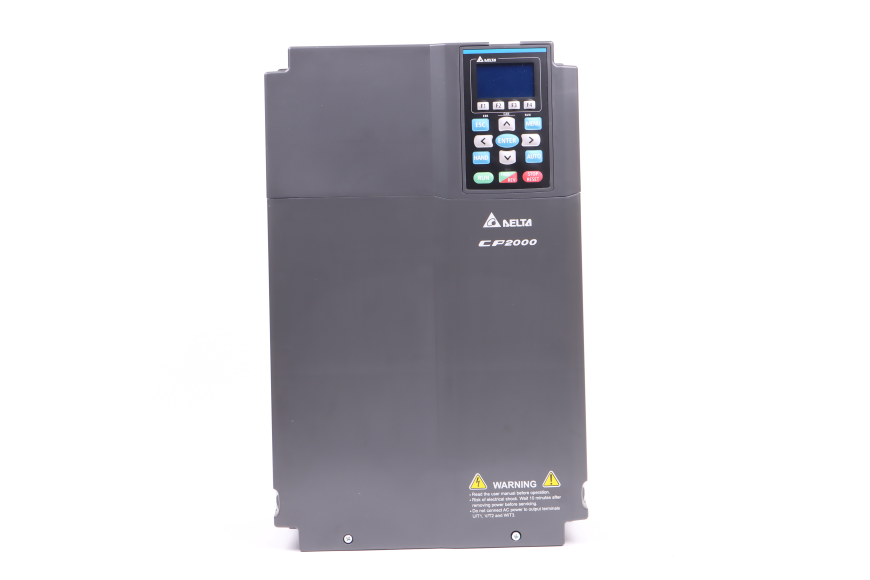

Frequency inverter CP2000 - 22 kW 3-phase 400 Vac - STO

Artikelnummer VFD220CP43A-21

Discover the power and versatility of the CP2000 controller, designed specifically to meet the demands of HVAC applications.

More information
  • Power (KW): 22
  • Phase: 3~400
  • Current (Ampere): 45
  • IP rating: 20
  • Mains filter: Without
  • Sizes: 250mm x 400mm x 210mm (b x h x d)
  • Weight: 10,49 kg
  • STO: Yes
  • HVAC: Yes

Specifications:

PID control for precise process control

Torque boost control for enhanced performance

Pump cascade control for advanced pump system management

Fire mode, bypass function, sleep/wake up function for flexible operation

Built-in mains filter up to 30 kW for optimal mains power quality

Modbus master or slave, BACnet MS/TP for communication flexibility

Lacquered PCBs for reliability in aggressive environments

Certifications: UL/CuL/CE

Downloads

Brochures, manuals and technical information.
