  1. Frequency inverters
  2. Frequency inverter CP2000 - 18.5 kW

Frequency inverter CP2000 - 18.5 kW

Artikelnummer VFD185CP4EA-21 No longer available

Discover the power and versatility of the CP2000 controller, designed specifically to meet the demands of HVAC applications.

More information View alternatives
  • Power (KW): 18.5
  • Phase: 3~400
  • Current (Ampere): 38
  • IP rating: 20
  • Mains filter: With

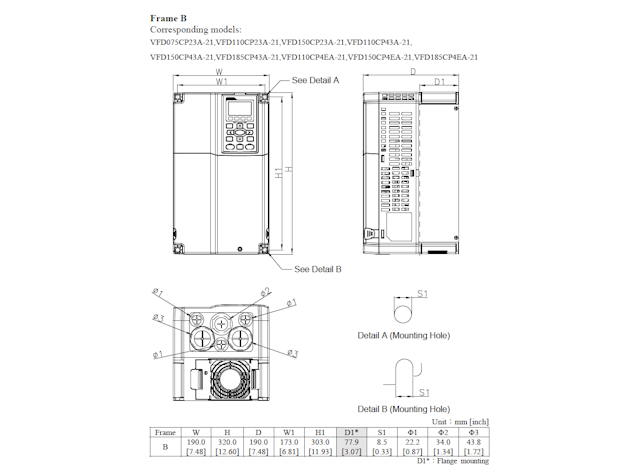

  • Sizes: 190mm x 320mm x 190mm (b x h x d)
  • STO: Yes
  • HVAC: Yes

Specifications:

  • PID control for precise process control
  • Torque boost control for enhanced performance
  • Pump cascade control for advanced pump system management
  • Fire mode, bypass function, sleep/wake up function for flexible operation
  • Built-in mains filter up to 30 kW for optimal mains power quality
  • Modbus master or slave, BACnet MS/TP for communication flexibility
  • Lacquered PCBs for reliability in aggressive environments
  • Certifications: UL/CuL/CE

Downloads

Brochures, manuals and technical information.

Need assistance or advice?

Feel free to get in touch. We can be reached on weekdays between 08:30 and 17:00.

+31 315 257 267 [email protected]
Unfortunately, this product is no longer available
