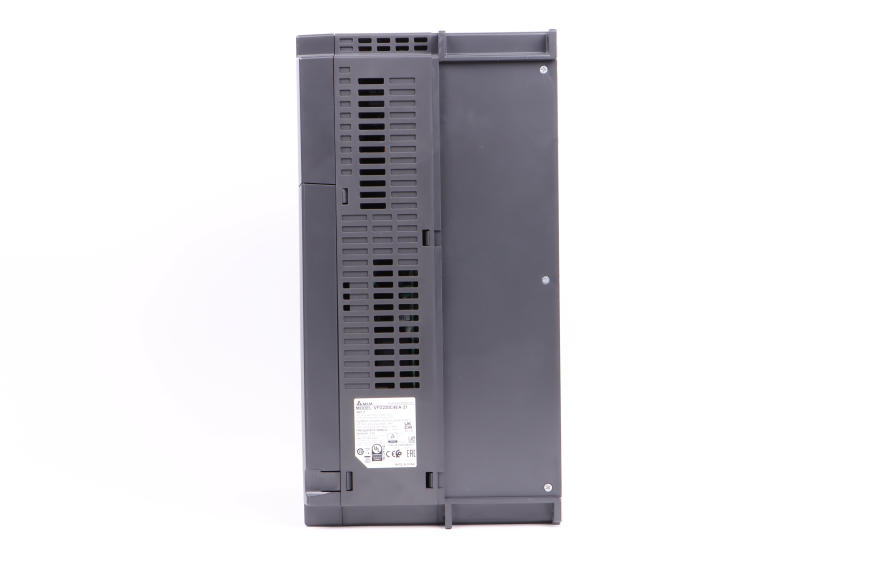

Frequency inverter C2000+, 18.5 kW
Artikelnummer
VFD185C4EA-21
Discover the power and versatility of this controller, designed for robust performance in a variety of applications.
- Power (KW): 18.5
- Phase: 3~400
- Current (Ampere): 38
- IP rating: 20
- Mains filter: With

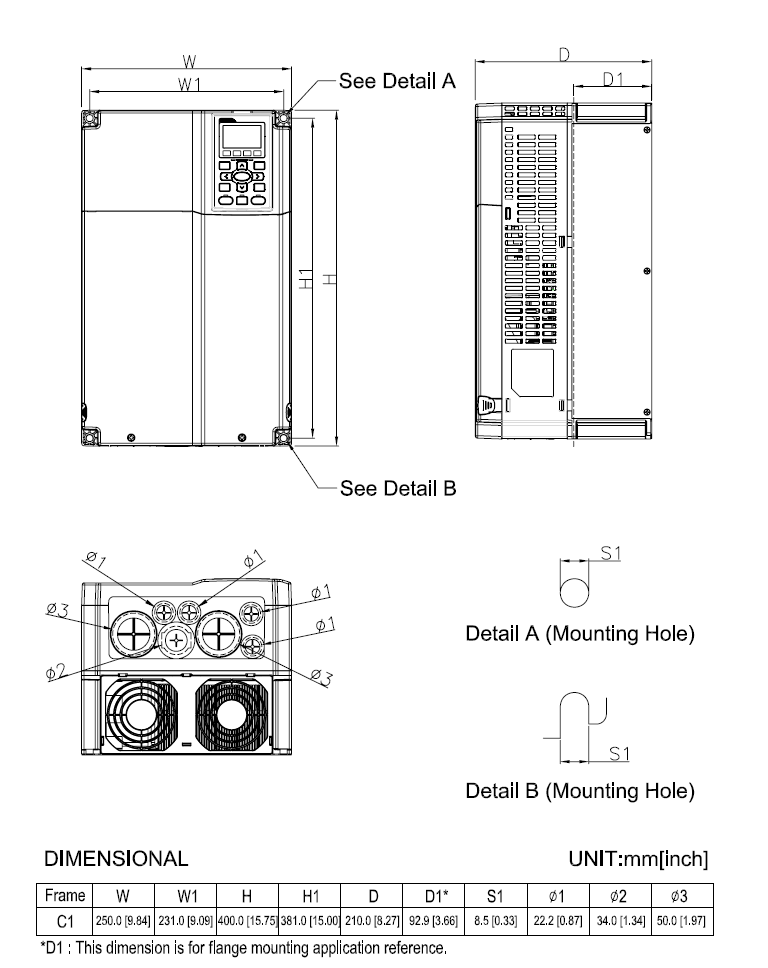

- Sizes: 250mm x 400mm x 210mm (b x h x d)
- Weight: 12,00 kg
- STO: Yes
Specifications:
PID control
Torque boost control
Built-in mains filter up to 30 kW
Internal PLC with Modbus and CANopen, expandable with master slave
Lacquered PCBs for aggressive environments
Certifications: UL/CuL/CE
Downloads
Brochures, manuals and technical information.
- Catalog C2000 Plus C .pdf
- Manual C2000 Plus .pdf
- Software VFD Explorer Lite V1 00 .zip
- Software VFD Soft V1 58 .zip
- Afmetingen en CAD_bestanden_FrameC1_C2000 .zip
